Concepts

Overview

Dalus provides a set of fundamental elements for modeling complex systems. These elements are organized into categories for structural modeling, behavioral modeling, and operational planning.

Architecture Elements

Element	Purpose
Part	Structural unit representing a component, subsystem, or module. Can be decomposed hierarchically.
Port	Entry or exit point on a Part’s boundary where it interacts with other Parts.
Interface	Defines what flows between Parts through Ports—matter, information, energy, or mechanical connections.
State	Represents a distinct mode a Part can be in at any given time.
Transition	Defines allowed state changes and what Actions execute when the transition occurs.
Action	A function that a Part performs, with inputs, outputs, and executable code.
Signal	Connects Actions in sequence, propagating outputs to inputs and triggering execution.

Supporting Elements

Element	Purpose
Variable	Represents quantities with values and units—used for attributes, inputs/outputs, and connection properties.
Requirement	Captures stakeholder needs with constraints that determine verification status.

Mission Planning Elements

Element	Purpose
Mission	An operational scenario or use case that the system must support.
Actor	An external entity (person, system, or environment) that interacts with the system.
Subject	The system or subsystem being analyzed in the context of a use case.

Coming from SysML v1? See the SysML v1 ⇄ SysML v2 ⇄ Dalus mapping.

Variables

A Variable consists of a name, value, and unit (optional). They appear as:

• Part attributes (e.g., mass: 200 kg)
• Inputs and outputs on Actions (e.g., voltage: 10 V)
• Connections inside interfaces (e.g., flow_rate: 8 kg/s, T: 25 C, p: 90 psi)

Variable values are defined by mathematical expressions, i.e. 1 + 2*(43^5), and can reference other variables by name, i.e. total_mass = mass1 + mass2.

Requirements

A Requirement captures a stakeholder need or obligation that the system must satisfy.

Core properties:

• level – abstraction level (mission, system, subsystem, component)
• name – short, human-readable title
• statement – the requirement text expressed as a shall/should clause
• constraints – quantitative checks such as mass < 100 kg, each referencing a Variable, operator, and limit
• status – verification state derived from constraints (complete, failed, in progress)

Verification

Requirement status is determined automatically:

• Constraints evaluate to true or false based on their referenced Variable
• A requirement is complete when all constraints are true, failed when any is false, in progress when variables lack values
• Actions can set Variables globally, updating constraint evaluations

Requirements are assigned to specific Parts to establish traceability.

Parts

The Part is the fundamental structural element. A Part represents a self-contained portion of your system—hardware or software—that you treat as a black box.

Parts can be nested indefinitely to capture system decomposition:

• Spatial decomposition for hardware (assemblies, sub-assemblies, components)
• Logical decomposition for software (layers, services, modules)

Part properties are called attributes, which are Variables that belong to the Part.

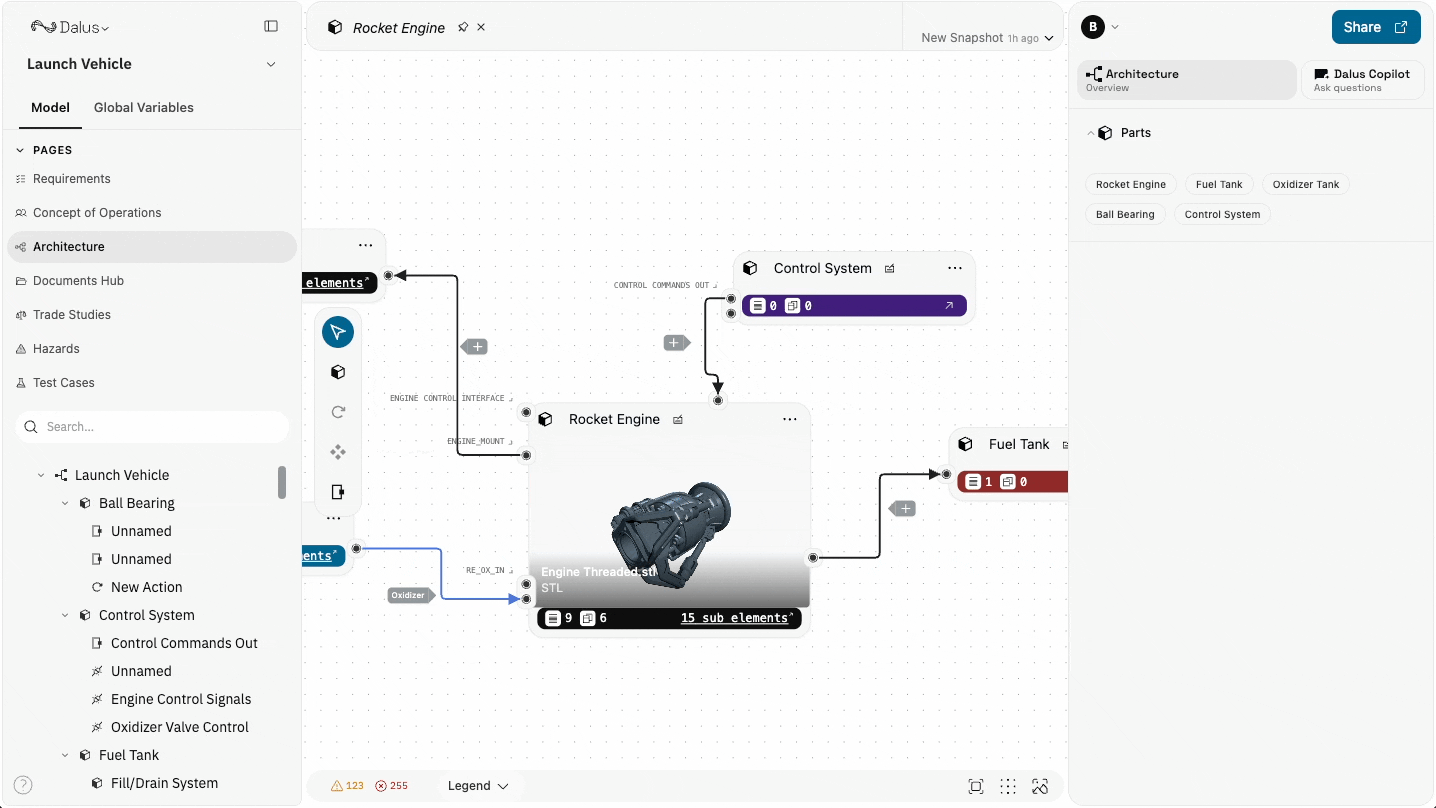

Structural decomposition of a satellite system

Ports

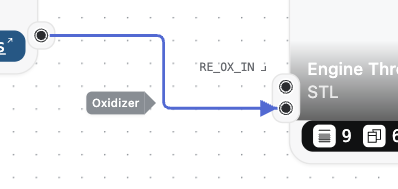

Ports are the exposed entry or exit points on a Part’s boundary. They mark where the Part interacts with the outside world.

Interfaces

Interfaces define what flows between Parts through Ports. An Interface has a name, optional color, and one or more Connections—the individual flows of matter, information, energy, or mechanical load.

Connections

A Connection captures:

Field	Description
Type	Matter, Information, Energy, or Binding
Direction	Flow orientation (in, out, both)
Subtype	Optional detail (e.g., Ethernet, O2 gas, Electrical)
Variable	The numeric value and unit (e.g., 2 kg/s, 28 V)
Properties	Additional variables (e.g., frequency, temperature, pressure)

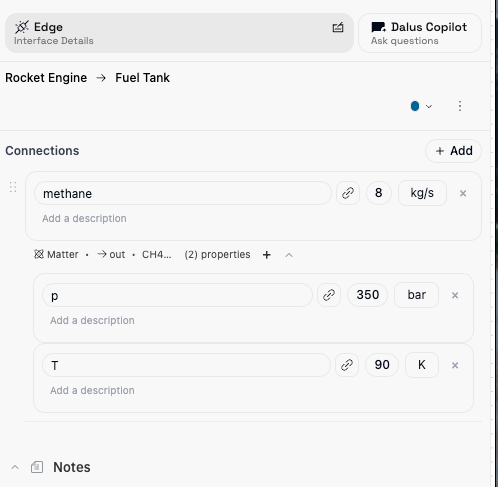

Interface connecting two subsystems

States

States represent the distinct modes a Part can inhabit during its lifecycle (e.g., OFF, NOMINAL, SAFE MODE).

To assign a State to a Part, add it inside that Part in the element tree.

Transitions

A Transition defines which states can transition to other states and what happens when the transition occurs.

Create a transition by connecting two states on the canvas. Assign a direction and Actions (transition effects) to execute when triggered.

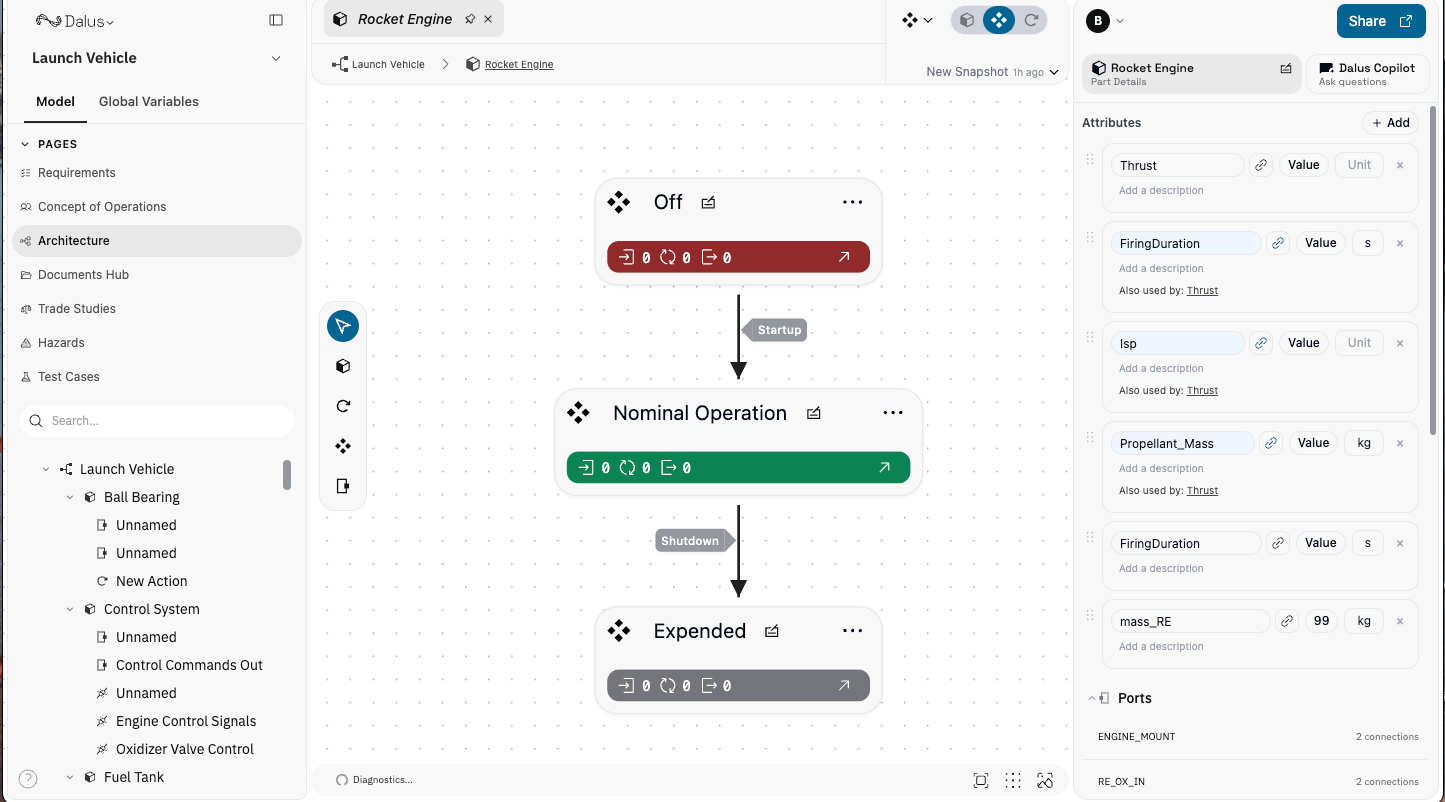

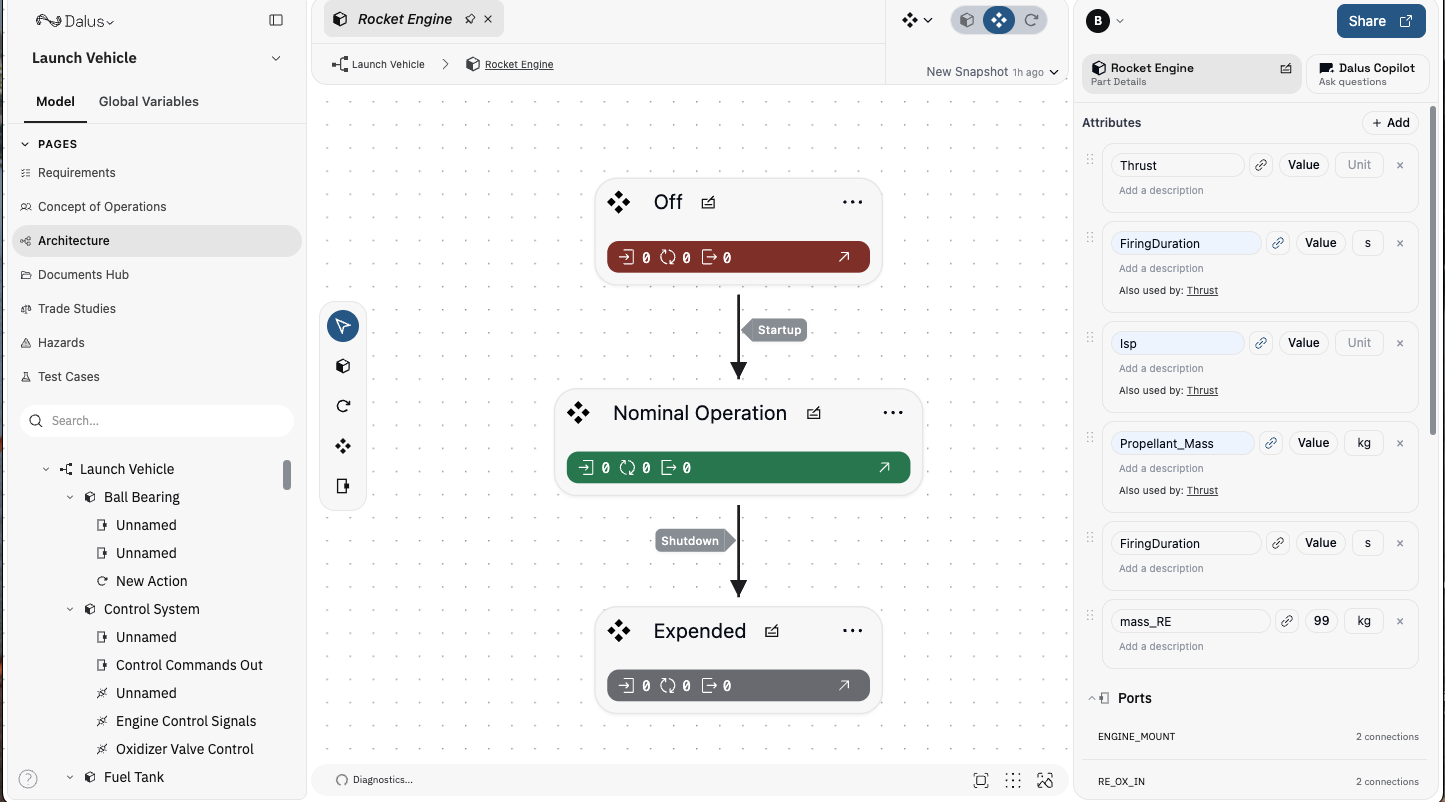

State machine for a rocket engine

Actions

Actions are the functions that a Part performs. Each Action:

1. Consumes input variables
2. Runs a Python code snippet
3. Produces output variables

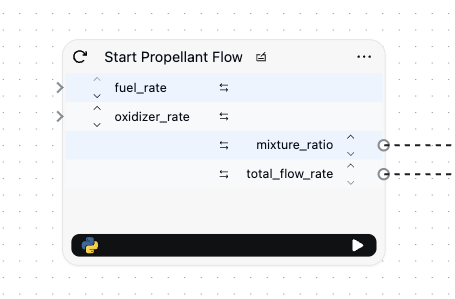

Action computing combustion pressure and temperature

Actions can be chained so outputs feed into inputs of the next Action. Within Python you have global read/write access to every Variable in the model.

Each Action stores metadata:

• description – what the action does
• success criteria – expected outcomes
• failure modes – known failure scenarios

Signals

A Signal connects Actions in sequence: it propagates output Variables from one Action to the inputs of the next and triggers execution. An Action fires only after all its inputs have been provided.

Mission Planning

The Mission Planning (ConOps) view helps you model how your system will be used before diving into detailed architecture.

• Mission – An operational scenario or use case (e.g., “Launch sequence”, “Emergency abort”)
• Actor – An external entity that interacts with the system (e.g., “Operator”, “Ground station”, “Environment”)
• Subject – The system or subsystem being analyzed
• Interaction – Connections between Actors and Subjects showing how they communicate

Use ConOps to capture stakeholder needs, operational scenarios, and system context before decomposing into detailed Parts and Interfaces.

Conclusion

These concepts form the foundation for modeling systems in Dalus—from structural decomposition to behavioral modeling and requirements traceability.

If you haven’t already, complete the Quickstart for a hands-on guide.

To learn more about the modeling language Dalus is based on:

• SysML v2 Specification
• Sandy Friedenthal’s SysML v2 Basics slide deck

Start by identifying a clear goal for your model, then build only the components necessary to achieve that goal. Contact us at [e-mail] for help.

The goal is not just a diagram, but a single source of truth for your system that you can analyze, simulate, and evolve with confidence.
